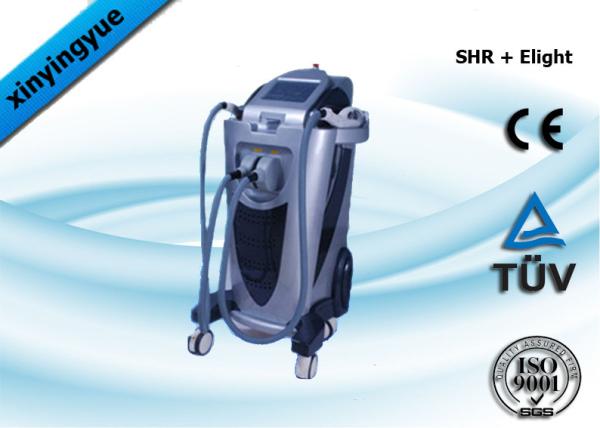

Technical parameter of elight machine
Wavelength | 430nm/530nm/560nm/590nm/640nm-1200nm |
Handpiece number | 2 piece with 5 filters |
Spot size | 12*30(mm) &15*50(mm) |
Cooling system | semiconductor+air+water+cooling gel |
IPL light energy | 1-50(j/cm²) |
Pulse duration | 1-10ms |
Pulse NO. | 1-6 |
SHR pulse duration | 1-7ms |
SHR frequency | 1-10HZ |
SHR energy | 1-50J/CM2 |
Skin cooling | -4°c-10°c |
Display | 10.4″color touch screen |
Output power | 2500W |
Voltage | 110v,50hz or 220v,60hz |
Machine Size | (L*W*H):42cm*38cm*90cm |
Net weight | 60kg |
Gross weight | 91kg |
Package size | 69cm*64cm*102cm |
Hair removal of OPT elight machine
1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3
days before treatment.
2. Clear treatment area.
3. Turn on machine,
1). Use SHR, adjust pulse width at 7ms, frequency 5HZ, energy
10J/cm2.
2). Use normal hair removal treatment, put the 640nm or 690nm
filter into the slot, select
"hair removal",adjust the parameter, set it to ‘ready’ .
4. Put cooling gel on treatment area about 2mm.
5. Wear protect goggles for patient and operator.
6. Shot the treatment area, let the crystal tip to touch cooling
gel, You are permitted to have
1/3 overlapping on treatment area.
7. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area until heat
disappear.
Skin rejuvenation
1. Clear treatment area.
2. Turn on machine ,put the 560nm filter into the slot, select
"skin rejuvenation",adjust the
parameter, set it to ‘ready’ .
3. Put cooling gel on treatment area about 2mm, you are suggested
to put cooling gel in refrigerator to keep temperature of gel
during 0-4°C.
4. Wear goggles for patient and operator
5. Shot the treatment area, let the crystal tip to touch cooling
gel. You are permitted to have
1/3 overlapping on treatment area.
6. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area for 30
minutes until heat-feeling
disappears.
Pigmentation Therapy
1. Clear treatment area.
2. Turn on machine ,put the 480nm or 530nm filter into the slot,
select "pigmentation
therapy",adjust the parameter, set it to ‘ready’ .
3. Put cooling gel on treatment area about 2mm, you are suggested
to put cooling gel in
refrigerator to keep temperature of gel during 0-4°C.
4. Wear goggles for patient and operator
5. Shot the treatment area, let the crystal tip to touch cooling
gel. You are permitted to have
1/3 overlapping on treatment area.
6. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area for 30
minutes until heat-feeling
disappears.
Vascular Therapy
1. Clear treatment area.
2. Turn on machine ,put the 580nm filter into the slot, select
"vascular therapy",adjust the
parameter, set it to ‘ready’ .
3. Put cooling gel on treatment area about 2mm, you are suggested
to put cooling gel in
refrigerator to keep temperature of gel during 0-4°C.
4. Wear goggles for patient and operator
5. Shot the treatment area, let the crystal tip to touch cooling
gel. You are permitted to have
1/3 overlapping on treatment area.
6. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area for 30
minutes until heat-feeling
disappears.
Acne Therapy
1. Clear treatment area.
2. Turn on machine ,put the 430nm filter into the slot, select
"acne therapy",adjust the
parameter, set it to ‘ready’ .
3. Put cooling gel on treatment area about 2mm, you are suggested
to put cooling gel in
refrigerator to keep temperature of gel during 0-4°C.
4. Wear goggles for patient and operator
5. Shot the treatment area, let the crystal tip to touch cooling
gel. You are permitted to have
1/3 overlapping on treatment area.
6. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area for 30
minutes until heat-feeling
disappears.
Wrinkle removal
1. Clear treatment area.
2. Turn on machine ,put the 580nm filter into the slot, select
"wrinkle removal",adjust the
parameter, set it to ‘ready’ .
3. Put cooling gel on treatment area about 2mm, you are suggested
to put cooling gel in
refrigerator to keep temperature of gel during 0-4°C.
4. Wear goggles for patient and operator
5. Shot the treatment area, let the crystal tip to touch cooling
gel. You are permitted to have
1/3 overlapping on treatment area.
6. Wipe off cooling gel after treatment and clear treatment area
with cooling water. If patients
feel warm or hot, you may put ice bag on treatment area for 30
minutes until heat-feeling
disappears.
